UV Printer

  • A3+ Dual Heads Support UV Led Flatbed Printer Phone Case Printing Machine

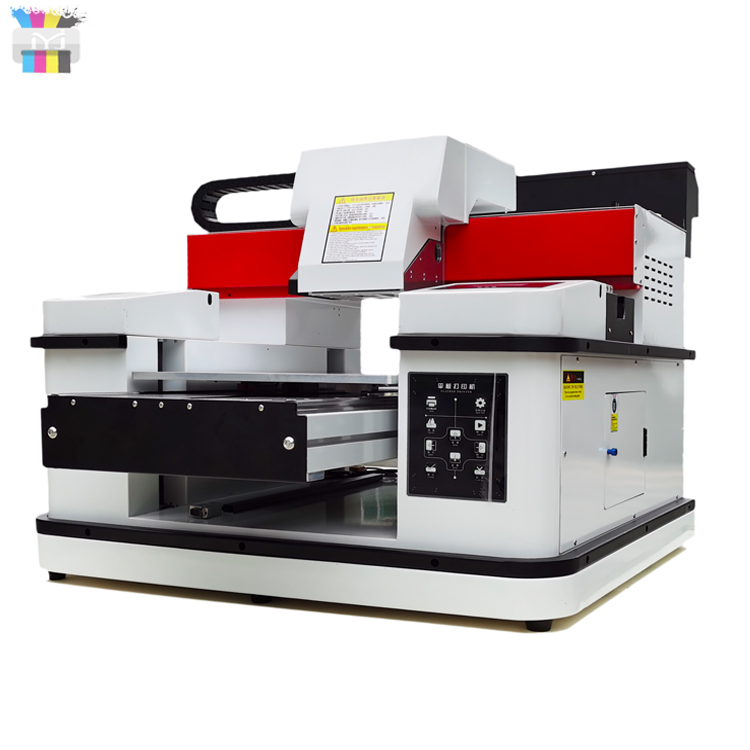

A3+ Dual Heads Support UV Led Flatbed Printer Phone Case Printing Machine

A3+ Dual Heads Support UV Led Flatbed Printer Phone Case Printing Machine

  • Head: Dual Epson Tx800
  • Ink System: CISS System
  • Automatic: Fully Automatic
  • Name: A3+ Phone case printing machine
  • Description: A3+ Dual Heads Support UV Led Flatbed Printer Phone Case Printing Machine
  • INQUIRY   EMAIL

A3+ Dual Heads Support UV Led Flatbed Printer Phone Case Printing Machine



Company Information



Best HL Limited (MYJ) was set up in Shenzhen China,which is the manufacturer to research and produce the uv flatbed printer,food printer, Coffee Printing Machine, t shirt printer, eco solvent printer etc

adverting products for the customers since 2003.

Fully automatic A3 Dual Printer Heads Support Phone Case Printing Machine From Factory



UV Flatbed-Panel Printer, also know as universal flatbed-panel printer or uv inkjet flabted printer, breaks through the bottle neck of digital printing technology and reach the level of starting with single page without plate-

making and full-color imgaes printing at one time in the true output sense.



Compared with traditional printing technology, the uv flatbed printer has many advantages.



MYJ UV Flatbed Printer adopts stable platform technology and advanced stepper motor drive mode. it combines infrared ray scan meanwhile, laser positioning, water+ air cooling to meet long term continuous work

requirments. It has a wide printing rage and can print products within 200mm height.



MYJ UV Flabed Printer can print unlimited material, it support the phone case, stone, acrylic board, wallet, customzied gift, ceramic, usb disk, pvc card, metal box etc printing well.



Product Description



Model

HL-33*60II

Printer Head

(2 TX800 printer heads support)

Resolution

8PASS,12PASS,16PASS

Printing Size

330*600mm

Speed

8PASS;3~5 Suqare Meters/H

Software

Riprint

Printing Height

0~160mm Infrared Ray Scan

Computer System

Windows

Ink Consumable

1Square Meter/10-20ml

Colors

CMYK + White + Glossy

Ink System

CISS System

Embossed

Support

Colors Output

Support color and white and glossy one time printing

Glossy

Support

UV Led Life

3years

Packaged Size

L1040*W900*L900mm

UV Cool Method

Cycle Water + Air cooling

Machine Size

L1040*W900*L900mm

UV Led Power

Adjustable Max Be 130W

Net/Gross Weight

75KG/105KG

Height Adjustment

Fully Automatic

Packaged

Wooden Case

Platform Drive

Pulse servo motor drive

Voltage/Socket

AC100~230V/(Accordingly Local Country)

Printer head protect

Fully automatic and keep wet system in

Printing Material

Metal,glass, wood, ceramic, plastic, tpu, acrylic etc





MYJ A3+ Size 33*60 UV Led Flabted Printer which is a multi functional LED digital UV printer, the printer was built with industrial configuration as thicken aluminum profile,

water circulation cooling system,130W adjustable automatic detect UV Curing system... max. 5760DPI*1440DPI resolution.



 A3 UV flatbed printer can print on bend, cylinder objects, balls etc. Output with good 3D texture printing result.








 The UV Led Flatbed Printer Support Print The White Ink, CMYK And Glossy One Time. Images Printed On Never Fade, Water proof, Scartch Proof etc.

 It support two sets DX8  heads print head with 3 times faster speed.

Double nozzle design; ink bag with negative pressure function, making it more difficult to drip ink during printing.



Fully automatic A3 Dual Printer Heads Support Phone Case Printing Machine From Factory



UV Led Flatbed Printer with imported scan sensor, can adjust the printing height automaticlly.

The UV printing machine platform uses high-quality screw drive, which is more precise than belt printing.

Fully automatic A3 Dual Printer Heads Support Phone Case Printing Machine From Factory

12 Color Ink Cartridges Design, CMYK+LC+LM, White And Glossy etc. Two spot colors make the printing more vivid, the effect is more realistic, and the colors is more nature.

At the same time, we have the alarm system for the uv ink when the cartridges there is no ink.

Fully automatic A3 Dual Printer Heads Support Phone Case Printing Machine From Factory



A3 UV Flatbed Printer Has Automatically wipe the print head and keep the system wet. It is automatically flushed when the machine is turned on,

and kept moist when turned off. Prevent print head blocking during idle and after printing.

Fully automatic A3 Dual Printer Heads Support Phone Case Printing Machine From Factory



High Quality Operation Screen, make the printing process easier, long lifespan, no worry out of work.

Fully automatic A3 Dual Printer Heads Support Phone Case Printing Machine From Factory



The ink cartridges with negative pressure function makes it more difficult to drip ink during printing.

Fully automatic A3 Dual Printer Heads Support Phone Case Printing Machine From Factory

 Self-contained motor cylindrical jig, making the printing cylinder more precise

 Fully automatic A3 Dual Printer Heads Support Phone Case Printing Machine From Factory







Printing Sample



Fully automatic A3 Dual Printer Heads Support Phone Case Printing Machine From Factory

Fully automatic A3 Dual Printer Heads Support Phone Case Printing Machine From Factory







A3 size dual printer heads uv printing machine support printing on the metal, glass, wood, ceramic, plastic, tpu, pvc, wood etc all materials well.



FAQ



What you will concern as follow:

Q1:What’s the package?

A: We have 3 layers package: The outside, we adopt plywood case, which is fumigation free. In the middle is covered with thick sponge to protect the machine from shaking.

Inside is covered by thickening plastic bag for waterproof.

Q2: Will the package damaged during transportation?

A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation.

Q3: How to install and run the machine?

A: we have menus and videos to show you for training. And we also will train you on line. Most of customers training to run the machine like this, very little customer come factory for training.

Q4: How can I do if the machine goes wrong?

A: If confronted with such problems, please contact us ASAP and do not try to fix the machine by yourself or someone else. We will response within 24 hours as quickly as we can to solve it for you.



Fully automatic A3 Dual Printer Heads Support Phone Case Printing Machine From Factory





We supply all products by the reasonable price and real-time support lean upon our own production line, professional experience, strict parts purchase channel and altitudinal responsible action.

We provide the latest major news and create the profitable  products, Our experiential support team gather all the technique and receive the newest training timely to provide the best support.

Our Services



· All of our machine will be full-checked and tested by our quality control department before shipment.

· Lifetime technology maintenance in free and spare parts supply.

· Free training.

· 24 hours technical supported.

· We will offer ‘instruction books’, “Operation Manual” and “Training Video” to you. Which is easily understand.

· We also will offer online face by face training, from our special software, our engineer can control machine computer and machine to show you step by step.
